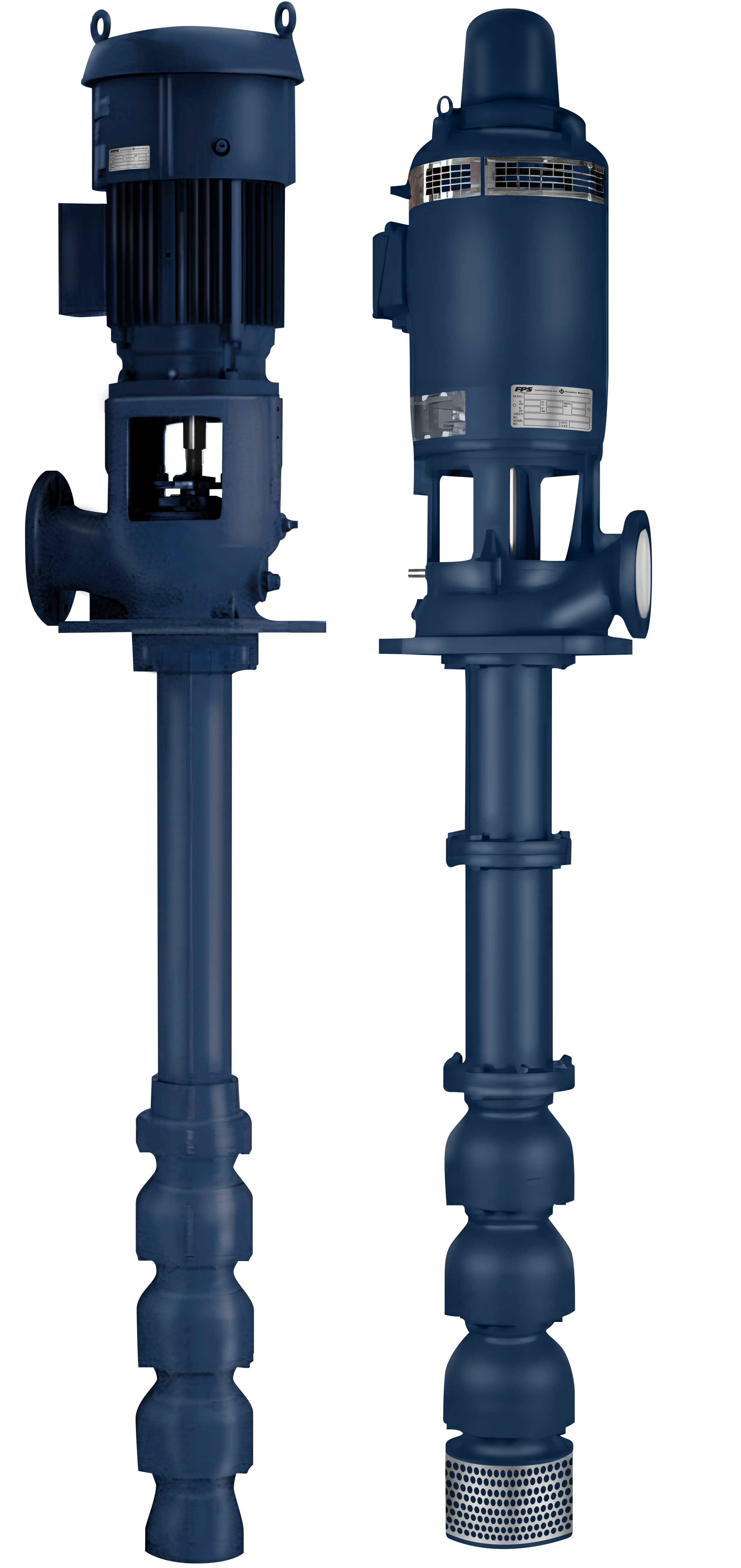

SVT Series
Vertical Turbine Pump
SVT Series vertical turbine pumps (VTP) consists primarily of bowls and impellers assembly with a pump shaft connect to the driver unit. The pumps are outfitted with superior materials for proven durability aligned with a highly efficient broad operating range.
SVT Series vertical turbine pumps also cover a range that comply with NFPA-20 standard for firefighting application. The pumps could be supplied with electric motor (vertical solid shaft or vertical hollow shaft) or diesel engine.
Applications
- Fire fighting
- Municipal
- Water transfer
- Water treatment plant
- Irrigation
- River & lake pumping
- Sump pumping
Specifications
- Capacity: 5000 m3/hr
- Head: up to 350m
- Speed: 1450 rpm (50Hz) / 3000 rpm (50Hz)
- Motor Power: 5.5 kW – 1600 kW
- Rated Voltage: 380V – 415V, 6kV, 10kV
- Well Diameter: 6 – 20 Inch
- Max, Discharge Diameter: 650 mm
SVT Series
| Model | Size (in) | Size (mm) | Rated Capacity (m3/hr) | Max. Head (m) | Speed (rpm) |
| 6SVT | 6" | 150 | 10 | 149 | 2940 |
| 20 | 204 | 2940 | |||
| 30 | 165 | 2940 | |||
| 40 | 186 | 2940 | |||
| 50 | 148 | 2940 | |||
| 8SVT | 8" | 200 | 60 | 154 | 2940 |
| 80 | 122 | 2940 | |||
| 90 | 114 | 2940 | |||
| 125 | 86 | 2940 | |||
| 10SVT | 10" | 250 | 130 | 119 | 1460 |
| 12SVT | 12" | 300 | 160 | 156 | 1460 |
| 185 | 135 | 1460 | |||
| 220 | 119 | 1460 | |||
| 14SVT | 14" | 350 | 300 | 122 | 1460 |
| 370 | 114 | 1460 | |||
| 400 | 104 | 1460 | |||
| 16SVT | 16" | 400 | 450 | 175 | 1460 |
| 550 | 145 | 1460 | |||
| 18SVT | 18" | 450 | 650 | 175 | 1460 |
| 900 | 170 | 1460 | |||
| 20SVT | 20" | 500 | 1000 | 132 | 1460 |
| 1250 | 144 | 1460 | |||
| 2000 | 72 | 1460 |
