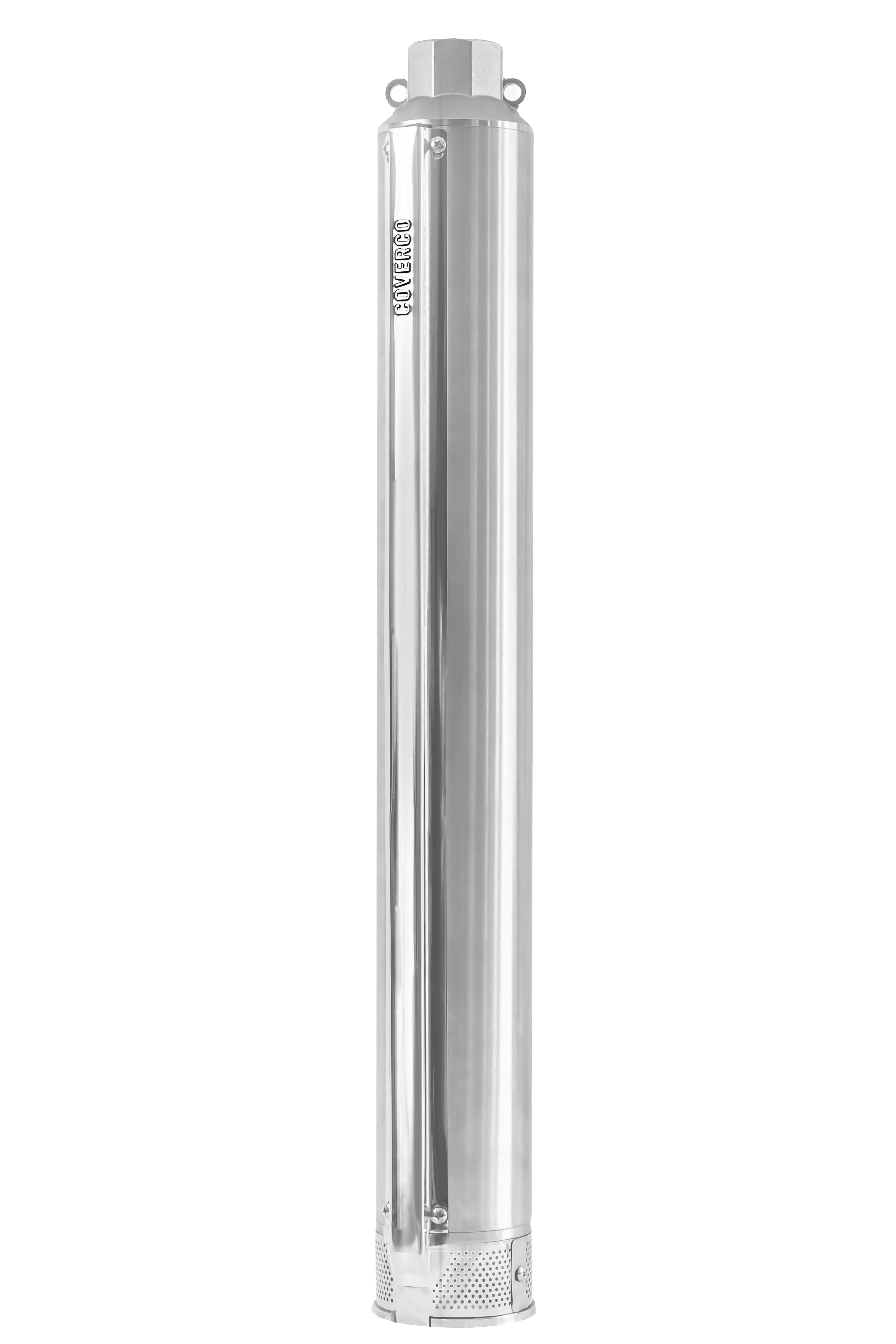

4” Deep Well Submersible Pump

The ADE Series 4” deep well submersible pump features a stainless-steel casing, cast stainless steel pump discharge outlet and bracket which offer higher performance and greater durability. The pump offers greater tolerance against sand through sophisticated hydraulic design and the use of engineered thermoplastic material for impeller that has superior wear resistance properties.

APPLICATION

  • Municipal water works
  • Water supply from tank, reservoir and well
  • Residential and agriculture
  • Irrigation for various purposes, sprinkler system
  • Domestic water supply
  • General industries

FEATURES

  • Flow rate up to 24m3/hr at 50 Hz
  • Head up to 250m at 50 Hz
  • 8 performance ranges – Outlet size: 1.5” – 4ADE 2, 4ADE 3, 4ADE 4

Outlet size: 2” – 4ADE 6, 4ADE 8, 4ADE 10, 4ADE 12, 4ADE16

  • Maximum allowable amount of sand: 400 g/m3
  • Maximum pump diameter: 97mm
  • NEMA standard dimensions
  • Pump can work continuously in vertical or horizontal positions (requires our consultation to confirm horizontal application type)

Available on Request

  • Head up to 500m
  • Different pump discharge sizes

4ADE2

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0

l/min

 0 15 20 25 30 35 40 45 50
 4ADE2-7/05  7 0.37 0.5 1.5" Head H m 46 44 42 40 36 33 29 24 20
 4ADE2-10/07  10 0.55 0.75 1.5" 66 63 60 57 52 47 42 35 28
 4ADE2-13/10  13 0.75 1.00 1.5" 86 82 78 74 68 61 55 45 37
 4ADE2-19/15  19 1.10 1.50 1.5" 126 120 115 109 100 90 80 67 54
 4ADE2-25/20  25 1.50 2.00 1.5" 166 158 151 143 132 119 105 89 71
 4ADE2-38/30  38 2.20 3.00 1.5" 252 240 230 218 201 181 160 135 108

4ADE3

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4

l/min

 0 20 30 40 50 60 70 80 90
 4ADE3-5/05  5 0.37 0.50 1.5" Head H m 46 44 32 30 27 23 18 13 7
 4ADE3-8/07  8 0.55 0.75 1.5" 66 63 52 48 43 36 28 20 11
 4ADE3-10/10  10 0.75 1.00 1.5" 86 82 65 60 53 45 35 25 14
 4ADE3-15/15  15 1.10 1.50 1.5" 126 120 98 90 81 68 53 39 22
 4ADE3-20/20  20 1.50 2.00 1.5" 166 158 130 120 108 90 70 52 29
 4ADE3-27/30  27 2.20 3.00 1.5" 252 240 176 162 145 122 95 70 39

4ADE4

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0

l/min

 0 30 40 50 60 70 80 90 100
 4ADE4-5/07  5 0.55 0.75 1.5" Head H m 34 32 31 29 27 24 19 16 11
 4ADE4-8/10  8 0.75 1.00 1.5" 55 52 49 47 44 38 31 25 18
 4ADE4-11/15  11 1.10 1.50 1.5" 76 71 67 65 60 53 43 34 24
 4ADE4-16/20  16 1.50 2.00 1.5" 110 104 98 94 86 76 62 49 36
 4ADE4-22/30  22 2.20 3.00 1.5" 151 143 134 130 119 104 85 68 49

4ADE6

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 9.6

l/min

 0 20 40 60 80 100 120 140 160
 4ADE6-5/07  5 0.55 0.75 2" Head H m 31 30 28 26 24 20 16 10 4
 4ADE6-7/10  8 0.75 1.00 2" 44 42 39 37 34 29 23 14 6
 4ADE6-10/15  10 1.10 1.50 2" 63 60 56 54 49 42 33 21 9
 4ADE6-14/20  14 1.50 2.00 2" 88 85 78 75 68 59 46 30 13
 4ADE6-20/30  20 2.20 3.00 2" 126 121 112 107 98 84 65 43 19
 4ADE6-27/40  27 3.00 4.00 2" 169 162 152 144 132 112 88 56 24

4ADE8

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 2.4 3.6 4.8 6.0 7.2 8.4 9.6 10.8

l/min

 0 40 60 80 100 120 140 160 180
 4ADE8-3/07  3 0.55 0.75 2" Head H m 18 16 15 14 13 12 10 7 2
 4ADE8-5/10  5 0.75 1.00 2" 29 27 26 25 23 20 17 13 3
 4ADE8-8/15  8 1.10 1.50 2" 46 44 41 39 36 32 27 21 4
 4ADE8-10/20  10 1.50 2.00 2" 58 55 52 49 45 41 35 25 5
 4ADE8-15/30  15 2.20 3.00 2" 87 82 78 74 68 61 51 39 8
 4ADE8-20/40  20 3.00 4.00 2" 116 109 103 98 91 81 69 52 10
 4ADE8-28/40  28 4.00 5.50 2" 162 153 145 137 127 114 96 72 14

4ADE10

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.8 3.6 5.4 7.2 9.0 10.8 12.6 14.4

l/min

 0 30 60 90 120 150 180 210 240
 4ADE10-3/10  3 0.75 1.00 2" Head H m 18 17 16 15 14 12 9 7 4
 4ADE10-6/15  6 1.10 1.50 2" 36 35 33 31 29 24 18 14 8
 4ADE10-9/20  9 1.50 2.00 2" 55 53 50 47 43 37 28 22 13
 4ADE10-13/30  13 2.20 3.00 2" 79 77 72 68 63 54 41 37 19
 4ADE10-16/40  16 3.00 4.00 2" 96 93 89 84 78 66 50 38 22
 4ADE10-21/55  21 4.00 5.50 2" 128 124 116 110 102 87 66 57 31

4ADE12

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0

l/min

 0 33 67 100 133 167 200 233 267
 4ADE12-3/10  3 0.75 1.00 2" Head H m 18 17 16 14 13 11 8 5 2
 4ADE12-5/15  5 1.10 1.50 2" 30 28 26 24 21 18 14 9 2
 4ADE12-7/20  7 1.50 2.00 2" 42 39 37 33 30 25 19 12 3
 4ADE12-11/30  11 2.20 3.00 2" 66 62 58 53 47 40 31 20 5
 4ADE12-16/40  16 3.00 4.00 2" 98 93 86 80 71 62 51 36 13
 4ADE12-20/55  20 4.00 5.50 2" 123 116 108 100 89 78 64 45 16
 4ADE12-26/75  26 5.50 7.50 2" 159 151 140 130 115 101 83 59 21
 4ADE12-32/100  32 7.50 10 2" 196 186 172 160 142 124 102 72 26

4ADE16

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 21.6

l/min

 0 100 130 165 200 230 265 300 360
 4ADE16-4/15  4 1.10 1.50 2" Head H m 22 19 17 15 14 13 11 9 2
 4ADE16-6/20  6 1.50 2.00 2" 33 29 27 23 22 20 16 13 3
 4ADE16-10/30  10 2.20 3.00 2" 55 48 45 39 37 34 28 23 6
 4ADE16-12/40  12 3.00 4.00 2" 66 58 54 47 44 41 33 27 6
 4ADE16-14/50  14 3.70 4.00 2" 76 68 62 55 52 47 39 31 8
 4ADE16-16/55  16 4.00 5.50 2" 88 77 72 62 58 55 45 36 8
 4ADE16-20/75  20 5.50 7.50 2" 109 96 89 78 73 68 56 45 11
 4ADE16-25/100  25 7.50 10 2" 137 121 112 97 91 85 71 56 13

4ADE2

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0

l/min

 0 15 20 25 30 35 40 45 50
 4ADE2-7/05  7 0.37 0.5 1.5" Head H m 46 44 42 40 36 33 29 24 20
 4ADE2-10/07  10 0.55 0.75 1.5" 66 63 60 57 52 47 42 35 28
 4ADE2-13/10  13 0.75 1.00 1.5" 86 82 78 74 68 61 55 45 37
 4ADE2-19/15  19 1.10 1.50 1.5" 126 120 115 109 100 90 80 67 54
 4ADE2-25/20  25 1.50 2.00 1.5" 166 158 151 143 132 119 105 89 71
 4ADE2-38/30  38 2.20 3.00 1.5" 252 240 230 218 201 181 160 135 108

4ADE3

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4

l/min

 0 20 30 40 50 60 70 80 90
 4ADE3-5/05  5 0.37 0.50 1.5" Head H m 46 44 32 30 27 23 18 13 7
 4ADE3-8/07  8 0.55 0.75 1.5" 66 63 52 48 43 36 28 20 11
 4ADE3-10/10  10 0.75 1.00 1.5" 86 82 65 60 53 45 35 25 14
 4ADE3-15/15  15 1.10 1.50 1.5" 126 120 98 90 81 68 53 39 22
 4ADE3-20/20  20 1.50 2.00 1.5" 166 158 130 120 108 90 70 52 29
 4ADE3-27/30  27 2.20 3.00 1.5" 252 240 176 162 145 122 95 70 39

4ADE4

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0

l/min

 0 30 40 50 60 70 80 90 100
 4ADE4-5/07  5 0.55 0.75 1.5" Head H m 34 32 31 29 27 24 19 16 11
 4ADE4-8/10  8 0.75 1.00 1.5" 55 52 49 47 44 38 31 25 18
 4ADE4-11/15  11 1.10 1.50 1.5" 76 71 67 65 60 53 43 34 24
 4ADE4-16/20  16 1.50 2.00 1.5" 110 104 98 94 86 76 62 49 36
 4ADE4-22/30  22 2.20 3.00 1.5" 151 143 134 130 119 104 85 68 49

4ADE6

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 9.6

l/min

 0 20 40 60 80 100 120 140 160
 4ADE6-5/07  5 0.55 0.75 2" Head H m 31 30 28 26 24 20 16 10 4
 4ADE6-7/10  8 0.75 1.00 2" 44 42 39 37 34 29 23 14 6
 4ADE6-10/15  10 1.10 1.50 2" 63 60 56 54 49 42 33 21 9
 4ADE6-14/20  14 1.50 2.00 2" 88 85 78 75 68 59 46 30 13
 4ADE6-20/30  20 2.20 3.00 2" 126 121 112 107 98 84 65 43 19
 4ADE6-27/40  27 3.00 4.00 2" 169 162 152 144 132 112 88 56 24

4ADE8

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 2.4 3.6 4.8 6.0 7.2 8.4 9.6 10.8

l/min

 0 40 60 80 100 120 140 160 180
 4ADE8-3/07  3 0.55 0.75 2" Head H m 18 16 15 14 13 12 10 7 2
 4ADE8-5/10  5 0.75 1.00 2" 29 27 26 25 23 20 17 13 3
 4ADE8-8/15  8 1.10 1.50 2" 46 44 41 39 36 32 27 21 4
 4ADE8-10/20  10 1.50 2.00 2" 58 55 52 49 45 41 35 25 5
 4ADE8-15/30  15 2.20 3.00 2" 87 82 78 74 68 61 51 39 8
 4ADE8-20/40  20 3.00 4.00 2" 116 109 103 98 91 81 69 52 10
 4ADE8-28/40  28 4.00 5.50 2" 162 153 145 137 127 114 96 72 14

4ADE10

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0

l/min

 0 33 67 100 133 167 200 233 267
 4ADE12-3/10  3 0.75 1.00 2" Head H m 18 17 16 14 13 11 8 5 2
 4ADE12-5/15  5 1.10 1.50 2" 30 28 26 24 21 18 14 9 2
 4ADE12-7/20  7 1.50 2.00 2" 42 39 37 33 30 25 19 12 3
 4ADE12-11/30  11 2.20 3.00 2" 66 62 58 53 47 40 31 20 5
 4ADE12-16/40  16 3.00 4.00 2" 98 93 86 80 71 62 51 36 13
 4ADE12-20/55  20 4.00 5.50 2" 123 116 108 100 89 78 64 45 16
 4ADE12-26/75  26 5.50 7.50 2" 159 151 140 130 115 101 83 59 21
 4ADE12-32/100  32 7.50 10 2" 196 186 172 160 142 124 102 72 26

4ADE12

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 1.8 3.6 5.4 7.2 9.0 10.8 12.6 14.4

l/min

 0 30 60 90 120 150 180 210 240
 4ADE10-3/10  3 0.75 1.00 2" Head H m 18 17 16 15 14 12 9 7 4
 4ADE10-6/15  6 1.10 1.50 2" 36 35 33 31 29 24 18 14 8
 4ADE10-9/20  9 1.50 2.00 2" 55 53 50 47 43 37 28 22 13
 4ADE10-13/30  13 2.20 3.00 2" 79 77 72 68 63 54 41 37 19
 4ADE10-16/40  16 3.00 4.00 2" 96 93 89 84 78 66 50 38 22
 4ADE10-21/55  21 4.00 5.50 2" 128 124 116 110 102 87 66 57 31

4ADE16

Model No. of stages Motor Power Pump Q

m³/h

 DELIVERY
kW HP Outlet (inch) 0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 21.6

l/min

 0 100 130 165 200 230 265 300 360
 4ADE16-4/15  4 1.10 1.50 2" Head H m 22 19 17 15 14 13 11 9 2
 4ADE16-6/20  6 1.50 2.00 2" 33 29 27 23 22 20 16 13 3
 4ADE16-10/30  10 2.20 3.00 2" 55 48 45 39 37 34 28 23 6
 4ADE16-12/40  12 3.00 4.00 2" 66 58 54 47 44 41 33 27 6
 4ADE16-14/50  14 3.70 4.00 2" 76 68 62 55 52 47 39 31 8
 4ADE16-16/55  16 4.00 5.50 2" 88 77 72 62 58 55 45 36 8
 4ADE16-20/75  20 5.50 7.50 2" 109 96 89 78 73 68 56 45 11
 4ADE16-25/100  25 7.50 10 2" 137 121 112 97 91 85 71 56 13
