Submersible Well Pumps
Double Suction Pumps
— FPS ISC Series

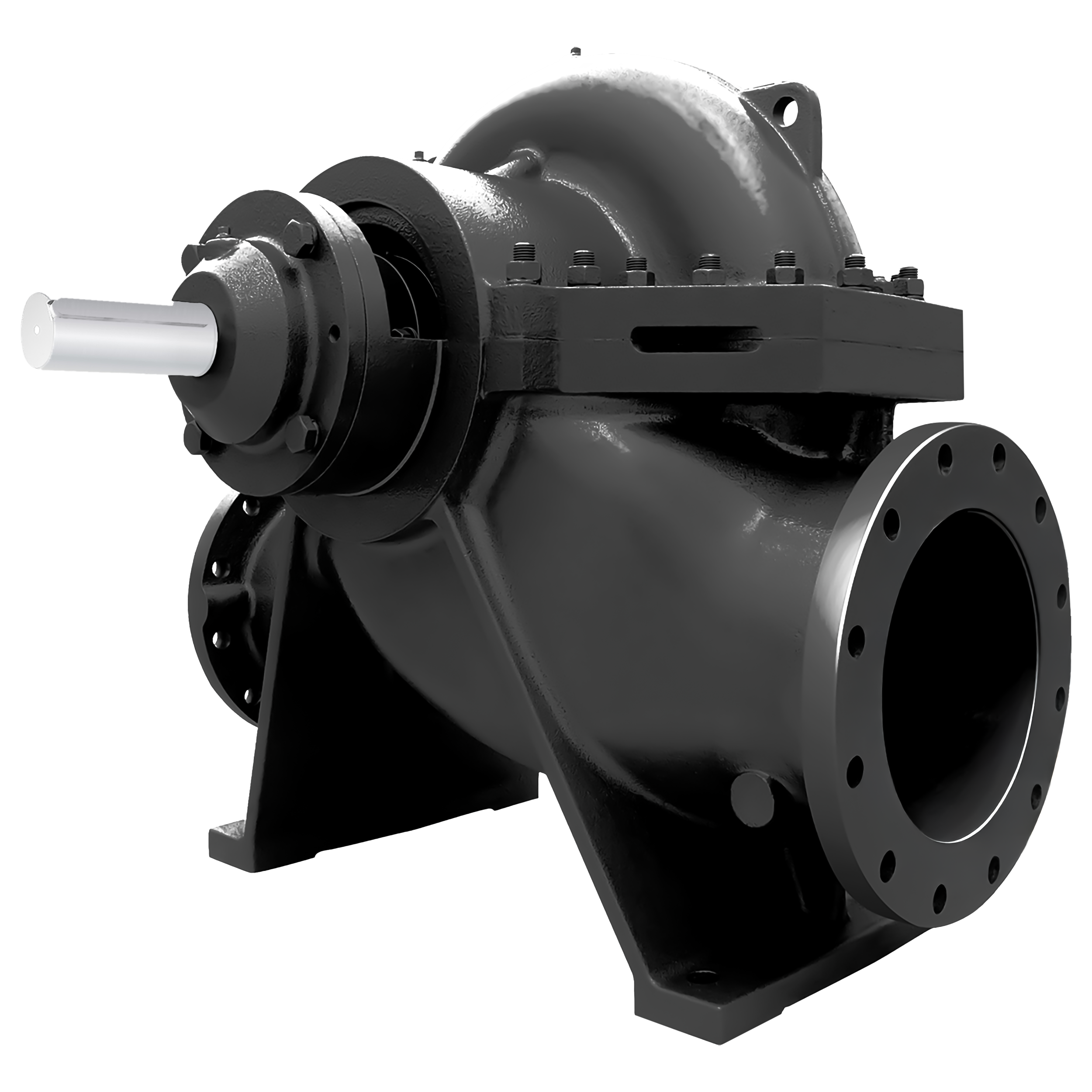

FPS ISC Series

Horizontal split case, double suction, single stage impeller with between bearing design pump. ISC pump is highly efficient, smooth operation with minimal vibration. The pump can be mounted either in horizontal or vertical position. The Double Suction Split Casing Centrifugal pumps are designed to pump clean liquids, without abrasives and suspended solids, non-explosive environments. Working condition: Operating Temp. : Up to 85 °C (Standard) ; 105 °C (On Request) Working Pressure : Up to 1.6 MPa (standard) ; 2.5 MPa (on Request)

Applications

  • Air Conditioner Water Circulation
  • Heating Pipe Network System
  • Building Water Supply
  • Power Plants
  • Fire Fighting
  • Marine and Mining Industry
  • Irrigation and Drainage of Pump Stations

Features

  • The Double Suction Split Casing Centrifugal pumps are designed to pump clean liquids, without abrasives and suspended solids, non-explosive environments.
  • Operating Temp. : Up to 85 °C (Standard) ; 105 °C (On Request)
  • WorkingPressure : Up to 1.6 MPa (standard) ; 2.5 MPa (on Request)

ISC Series

  • Horizontal split case, double suction, single stage impeller with between bearing design pump. ISC pump is highly efficient, smooth operation
  • with minimal vibration. The pump can be mounted either in horizontal or vertical position.
