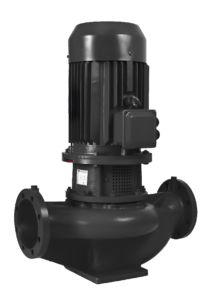

FPS INL Series

The single stage vertical in-line centrifugal pumps are designed to pump clean liquids, without abrasives and suspended solids, non-explosive environments.

  • Operating Temp. : -10 °C to 85 °C (Standard); 105 °C  (On Request)
  • Working Pressure : 10 bar standards;  16 Bar (on Request)

Applications

  • Water distribution / Water supply
  • HVAC & Cooling Tower
  • Irrigation systems
  • Fire fighting
  • Air conditioning
  • Industrial plants
  • Cold & hot eater circulation pump
  • Pool and fountain water transfer

Materials

  • Casing : Cast Iron
  • Impeller : Cast Iron/Bronze/SS304/SS316
  • Shaft : SS420
  • Shaft Seal : Mechanical Seal

Pump Specifications

  • Flow rate (Q) : up to 500m3/h
  • Head (H) : up to 150m
  • Speed : 1450 rpm or 2900 rpm (50Hz)

FPS INL SERIES

INL Series Vertical In-line Centrifugal Pump（50HZ）
Model Model (V1) Installation Dimensions (mm) Flange Dimensions (mm) Weight(kg)
4 Pole 2 Pole kW HP h1 L1 F G L AD B1 B2 n2xm2 n1xm1 s1 DN D K n-d b Pump Motor Total
 INL 40-125 F4-0005  Y2-801-4 0.55 0.75 113 152 150 310 407 145 104 95 170x200 200x230 12 40 150 110 32 16 48
 INL 40-125 F2-0011  Y2-802-2 1.1 1.5 32 17 49
 INL 40-125 F2-0015  Y2-90S-2 1.5 2 422 155 32 21 53
 INL 40-125 F2-0022  Y2-90L-2 2.2 3 447 32 26 57
 INL 65-125 F4-0005  Y2-801-4 0.55 0.75 128 175 360 407 145 113 99 65 185 145 37 16 53
 INL 65-125 F2-0015  Y2-90S-2 1.5 2 422 155 38 21 59
 INL 65-125 F2-0022  Y2-90L-2 2.2 3 447 38 26 63
 INL 65-125 F2-0030  Y2-100L-2 3 4 164 489 180 40 44 84
 INL 65-125 F2-0040  Y2-112M-2 4 5.5 504 190 40 43 83
 INL 65-125(F) F4-0005  Y2-801-4 0.55 0.75 155 152 200 410 407 130 105 40 16 56
 INL 65-125(F) F4-0007  Y2-802-4 0.75 1 40 17 57
 INL 65-125(F) F4-0011  Y2-90S-4 1.1 1.5 422 155 41 22 63
 INL 65-125(F) F2-0040  Y2-112M-2 4 5.5 164 504 190 46 43 89
 INL 65-125(F) F2-0055  Y2-132S1-2 5.5 7.5 187 577 210 49 65 115
 INL 65-125(F) F2-0075  Y2-132S2-2 7.5 10 49 69 119
 INL 80-125 F4-0007  Y2-802-4 0.75 1 160 152 220 460 407 145 140 116 80 200 160 8-φ18 25 44 17 61
 INL 80-125 F4-0011  Y2-90S-4 1.1 1.5 422 155 45 22 68
 INL 80-125 F2-0075  Y2-132S2-2 7.5 10 187 577 210 54 69 123
 INL 80-125 F2-0110  Y2-160M1-2 11 15 220 725 255 62 108 170
 INL 50-160 F4-0005  Y2-801-4 0.55 0.75 118 152 160 320 407 145 115 115 50 165 125 4-φ18 20 36 16 52
 INL 50-160 F4-0007  Y2-802-4 0.75 1 36 17 53
 INL 50-160 F2-0022  Y2-90L-2 2.2 3 447 155 36 26 62
 INL 50-160 F2-0030  Y2-100L-2 3 4 164 489 180 38 44 82
 INL 50-160 F2-0040  Y2-112M-2 4 5.5 504 190 38 43 81
 INL 50-160 F2-0055  Y2-132S1-2 5.5 7.5 187 577 210 42 65 107
 INL 65-160 F4-0005  Y2-801-4 0.55 0.75 138 152 175 370 407 145 128 115 65 185 145 4-φ18 20 42 16 58
 INL 65-160 F4-0007  Y2-802-4 0.75 1 42 17 59
 INL 65-160 F4-0011  Y2-90S-4 1.1 1.5 422 155 43 22 65
 INL 65-160 F2-0030  Y2-100L-2 3 4 138 164 175 370 489 180 128 115 170x200 200x230 12 65 185 145 4-φ18 20 44 44 88
 INL 65-160 F2-0040  Y2-112M-2 4 5.5 504 190 44 43 87
 INL 65-160 F2-0055  Y2-132S1-2 5.5 7.5 187 577 210 49 65 114
 INL 65-160 F2-0075  Y2-132S2-2 7.5 10 49 69 118
 INL 65-160(F) F4-0005  Y2-801-4 0.55 0.75 152 220 440 407 145 140 120 44 16 60
 INL 65-160(F) F4-0007  Y2-802-4 0.75 1 44 17 61
 INL 65-160(F) F4-0011  Y2-90S-4 1.1 1.5 422 155 45 22 67
 INL 65-160(F) F4-0015  Y2-90L-4 1.5 2.0 447 45 27 71
 INL 65-160(F) F2-0055  Y2-132S1-2 5.5 7.5 187 577 210 51 65 116
 INL 65-160(F) F2-0075  Y2-132S2-2 7.5 10 51 69 120
 INL 65-160(F) F2-0110  Y2-160M1-2 11 15 220 725 255 54 108 162
 INL 65-160(F) F2-0150  Y2-160M2-2 15 20 54 109 163
 INL 80-160 F4-0007  Y2-802-4 0.75 1 158 152 480 407 145 162 132 80 200 160 8-φ18 25 50 17 67
 INL 80-160 F4-0011  Y2-90S-4 1.1 1.5 422 155 52 22 74
 INL 80-160 F4-0015  Y2-90L-4 1.5 2 447 52 27 79
 INL 80-160 F4-0022  Y2-100L1-4 2.2 3 164 489 180 55 34 88
 INL 80-160 F2-0075  Y2-132S2-2 7.5 10 187 577 210 60 69 129
 INL 80-160 F2-0110  Y2-160M1-2 11 15 220 725 255 62 108 170
 INL 80-160 F2-0150  Y2-160M2-2 15 20 62 109 171
 INL 100-160 F4-0015  Y2-90L-4 1.5 2 188 152 260 540 447 155 168 136 170x200 200x230 12 100 220 180 8-φ18 24 56 27 83
 INL 100-160 F4-0022  Y2-100L1-4 2.2 3 164 489 180 58 34 92
 INL 100-160 F4-0030  Y2-100L2-4 3 4 58 37 95
 INL 100-160 F2-0110  Y2-160M1-2 11 15 220 725 255 65 108 173
 INL 100-160 F2-0150  Y2-160M2-2 15 20 65 109 174
 INL 100-160 F2-0185  Y2-160L-2 18.5 25 780 65 133 198
 INL 100-160 F2-0220  Y2-180M-2 22 30 810 280 66 155 221
 INL 100-160 F2-0300  Y2-200L1-2 30 40 222 882 305 73 224 298
 INL 125-160 F4-0030  Y2-100L2-4 3 4 220 179 330 690 504 180 202 162 260x260 300x300 18 125 250 210   26 100 37 137
 INL 125-160 F4-0040  Y2-112M-4 4 5.5 220 179 330 690 519 190 202 162 260x260 300x300 18 125 250 210 8-φ18 26 102 47 149
 INL 125-160 F2-0185  Y2-160L-2 18.5 25 234 794 255 108 133 241
 INL 125-160 F2-0220  Y2-180M-2 22 30 824 280 110 155 265
 INL 125-160 F2-0300  Y2-200L1-2 30 40 237 897 305 113 224 337
 INL 50-200 F4-0005  Y2-801-4 0.55 0.75 118 151 210 420 406 145 137 134 170x200 200x230 14 50 165 125 4-φ18 20 45 16 61
 INL 50-200 F4-0007  Y2-802-4 0.75 1 45 17 62
 INL 50-200 F4-0011  Y2-90S-4 1.1 1.5 421 155 46 22 68
 INL 50-200 F4-0015  Y2-90L-4 1.5 2 446 46 27 72
 INL 50-200 F2-0055  Y2-132S1-2 5.5 7.5 186 576 210 51 65 116
 INL 50-200 F2-0075  Y2-132S2-2 7.5 10 51 69 120
 INL 50-200 F2-0110  Y2-160M1-2 11 15 218 723 255 55 108 163
 INL 65-200 F4-0007  Y2-802-4 0.75 1 138 151 240 480 406 145 144 134 65 185 145 50 17 67
 INL 65-200 F4-0011  Y2-90S-4 1.1 1.5 421 155 51 22 73
 INL 65-200 F4-0015  Y2-90L-4 1.5 2 446 51 27 77
 INL 65-200 F2-0055  Y2-132S1-2 5.5 7.5 186 576 210 56 65 121
 INL 65-200 F2-0075  Y2-132S2-2 7.5 10 56 69 125
 INL 65-200 F2-0110  Y2-160M1-2 11 15 218 723 255 60 108 168
 INL 65-200(F) F4-0015  Y2-90L-4 1.5 2 154 449 155 158 142 52 27 78
 INL 65-200(F) F4-0022  Y2-100L1-4 2.2 3 166 491 180 54 34 87
 INL 65-200(F) F4-0030  Y2-100L2-4 3 4 54 37 90
 INL 65-200(F) F2-0110  Y2-160M1-2 11 15 221 726 255 61 108 169
 INL 65-200(F) F2-0150  Y2-160M2-2 15 20 61 109 170
 INL 65-200(F) F2-0185  Y2-160L-2 18.5 25 781 61 133 194
 INL 80-200 F4-0022  Y2-100L1-4 2.2 3 150 163 260 540 488 180 170 148 170x200 200x230 14 80 200 160 8-φ18 25 62 34 96
 INL 80-200 F4-0030  Y2-100L2-4 3 4 62 37 99
 INL 80-200 F4-0040  Y2-112M-4 4 5.5 503 190 62 47 109
 INL 80-200 F2-0150  Y2-160M2-2 15 20 218 723 255 69 109 178
 INL 80-200 F2-0185  Y2-160L-2 18.5 25 778 69 133 202
 INL 80-200 F2-0220  Y2-180M-2 22 30 150 218 260 540 808 280 70 155 225
 INL 80-200 F2-0300  Y2-200L1-2 30 40 221 881 305 76 224 300
 INL 100-200 F4-0030  Y2-100L2-4 3 4 188 179 290 600 504 180 192 166 100 220 180 24 76 37 113
 INL 100-200 F4-0040  Y2-112M-4 4 5.5 519 190 76 47 123
 INL 100-200 F4-0055  Y2-132S-4 5.5 7.5 202 592 210 80 65 145
 INL 100-200 F4-0075  Y2-132M-4 7.5 10 632 80 79 158
 INL 100-200 F2-0220  Y2-180M-2 22 30 234 824 280 88 155 243
 INL 100-200 F2-0300  Y2-200L1-2 30 40 237 897 305 90 224 314
 INL 100-200 F2-0370  Y2-200L2-2 37 50 90 235 325
 INL 100-200 F2-0450  Y2-225M-2 45 60 942 335 95 286 380
 INL 125-200 F4-0040  Y2-112M-4 4 5.5 220 179 330 680 519 190 208 170 200x250 250x300 18 125 250 210 8-φ18 26 97 47 144
 INL 125-200 F4-0055  Y2-132S-4 5.5 7.5 202 592 210 99 65 164
 INL 125-200 F4-0075  Y2-132M-4 7.5 10 632 99 79 178
 INL 125-200 F4-0110  Y2-160M-4 11 15 234 739 254 103 108 211
 INL 125-200 F2-0300  Y2-200L1-2 30 40 237 897 305 109 224 333
 INL 125-200 F2-0370  Y2-200L2-2 37 50 897 305 109 235 344
 INL 125-200 F2-0450  Y2-225M-2 45 60 237 942 335 114 286 399
 INL 125-200 F2-0550  Y2-250M-2 55 75 271 1041 370 126 373 499
 INL 125-200 F2-0750  Y2-280S-2 75 100 1116 410 126 485 610
 INL 150-200 F4-0075  Y2-132M-4 7.5 10 260 202 360 740 632 210 242 186 150 285 240 8-φ22 126 79 204
 INL 150-200 F4-0110  Y2-160M-4 11 15 234 739 255 129 108 238
 INL 150-200 F2-0550  Y2-250M-2 55 75 271 1041 370 152 373 525
 INL 150-200 F2-0750  Y2-280S-2 75 100 1116 410 153 485 637
 INL 150-200 F2-0900  Y2-280M-2 90 120 1166 153 541 694
 INL 200-200 F4-0110  Y2-160M-4 11 15 280 261 400 840 766 255 256 198 340x340 420x420   200 340 295 12-φ22 28 165 108 273
 INL 200-200 F4-0150  Y2-160L-4 15 20 821 165 129 294
 INL 200-200 F4-0185  Y2-180M-4 18.5 25 851 280 167 157 324
 INL 50-250 F4-0022  Y2-100L1-4 2.2 3 118 173 230 470 498 180 168 168 170x200 200x230 14 50 165 125 4-φ18 20 62 34 96
 INL 50-250 F4-0030  Y2-100L2-4 3 4 118 173 230 470 498 180 168 168 170x200 200x230 14 50 165 125 4-φ18 20 62 37 99
 INL 50-250 F2-0110  Y2-160M1-2 11 15 228 733 255 70 108 178
 INL 50-250 F2-0150  Y2-160M2-2 15 20 70 109 179
 INL 50-250 F2-0185  Y2-160L-2 18.5 25 788 70 133 202
 INL 65-250 F4-0022  Y2-100L1-4 2.2 3 138 173 260 520 498 180 168 168 65 185 145 66 34 100
 INL 65-250 F4-0030  Y2-100L2-4 3 4 66 37 103
 INL 65-250 F2-0110  Y2-160M1-2 11 15 228 733 255 74 108 182
 INL 65-250 F2-0150  Y2-160M2-2 15 20 74 109 183
 INL 65-250 F2-0185  Y2-160L-2 18.5 25 788 74 133 207
 INL 65-250 F2-0220  Y2-180M-2 22 30 818 280 74 155 229
 INL 65-250(F) F4-0022  Y2-100L1-4 2.2 3 174 497 180 178 164 68 34 102
 INL 65-250(F) F4-0030  Y2-100L2-4 3 4 68 37 105
 INL 65-250(F) F4-0040  Y2-112M-4 4 5.5 512 190 68 47 115
 INL 65-250(F) F4-0055  Y2-132S-4 5.5 7.5 197 587 210 71 65 137
 INL 65-250(F) F2-0185  Y2-160L-2 18.5 25 229 788 280 75 133 208
 INL 65-250(F) F2-0220  Y2-180M-2 22 30 819 76 155 231
 INL 65-250(F) F2-0300  Y2-200L1-2 30 40 232 892 305 83 224 307
 INL 65-250(F) F2-0370  Y2-200L2-2 37 50 83 235 317
 INL 80-250 F4-0040  Y2-112M-4 4 5.5 168 179 290 590 519 190 195 170 80 200 160 8-φ18 22 81 47 128
 INL 80-250 F4-0055  Y2-132S-4 5.5 7.5 202 592 210 83 65 148
 INL 80-250 F4-0075  Y2-132M-4 7.5 10 632 83 79 162
 INL 80-250 F2-0300  Y2-200L1-2 30 40 237 897 305 95 224 319
 INL 80-250 F2-0370  Y2-200L2-2 37 50 95 235 330
 INL 80-250 F2-0450  Y2-225M-2 45 60 942 335 99 286 385
 INL 80-250 F2-0550  Y2-250M-2 55 75 271 1041 370 113 373 486
 INL 100-250 F4-0055  Y2-132S-4 5.5 7.5 188 202 310 630 592 210 208 184 100 220 180 24 93 65 158
 INL 100-250 F4-0075  Y2-132M-4 7.5 10 632 93 79 172
 INL 100-250 F4-0110  Y2-160M-4 11 15 234 739 255 99 108 207
 INL 100-250 F2-0370  Y2-200L2-2 37 50 188 237 310 630 897 305 208 184 170x200 200x230 14 100 220 180 8-φ18 24 118 235 353
 INL 100-250 F2-0450  Y2-225M-2 45 60 942 335 120 286 406
 INL 100-250 F2-0550  Y2-250M-2 55 75 271 1041 370 123 373 496
 INL 100-250 F2-0750  Y2-280S-2 75 100 1116 410 123 485 607
 INL 125-250 F4-0110  Y2-160M-4 11 15 220 238 340 700 743 255 222 192 200x250 250x300 18 125 250 210 8-φ18 26 125 108 233
 INL 125-250 F4-0150  Y2-160L-4 15 20 798 125 129 254
 INL 125-250 F4-0185  Y2-180M-4 18.5 25 828 280 125 157 282
 INL 125-250 F2-0750  Y2-280S-2 75 100 275 1120 410 148 485 633
 INL 125-250 F2-0900  Y2-280M-2 90 120 1170 148 541 689
 INL 150-250 F4-0150  Y2-160L-4 15 20 260 238 360 760 798 255 245 210 150 285 240 8-φ22 155 129 284
 INL 150-250 F4-0185  Y2-180M-4 18.5 25 829 280 155 157 313
 INL 150-250 F4-0220  Y2-180L-4 22 30 869 155 179 334
 INL 150-250 F4-0300  Y2-200L-4 30 40 241 892 305 161 240 401
 INL 200-15026 F4-0185  Y2-180M-4 18.5 25 280 248 380 830 838 280 258 210 250x300 300x350 200 340 295 12-φ22 30 194 157 351
 INL 200-15026 F4-0220  Y2-180L-4 22 30 878 194 179 373
 INL 200-15026 F4-0300  Y2-200L-4 30 40 908 305 210 240 450
 INL 65-315 F4-0030  Y2-100L2-4 3 4 138 179 290 580 504 180 200 200 170x200 200x230 14 65 185 145 4-φ18 20 91 37 128
 INL 65-315 F4-0040  Y2-112M-4 4 5.5 519 190 91 47 138
 INL 65-315 F4-0055  Y2-132S-4 5.5 7.5 201 591 210 95 65 160
 INL 65-315 F4-0075  Y2-132M-4 7.5 10 631 95 79 173
 INL 65-315 F2-0220  Y2-180M-2 22 30 231 828 280 100 155 255
 INL 65-315 F2-0300  Y2-200L1-2 30 40 237 897 305 104 224 329
 INL 65-315 F2-0370  Y2-200L2-2 37 50 104 235 339
 INL 65-315 F2-0450  Y2-225M-2 45 60 942 335 112 286 397
 INL 65-315(F) F4-0055  Y2-132S-4 5.5 7.5 155 201 590 591 210 214 198 98 65 164
 INL 65-315(F) F4-0075  Y2-132M-4 7.5 10 631 98 79 177
 INL 65-315(F) F4-0110  Y2-160M-4 11 15 231 743 255 103 108 211
 INL 65-315(F) F2-0370  Y2-200L2-2 37 50 237 897 305 108 235 342
 INL 65-315(F) F2-0450  Y2-225M-2 45 60 155 237 290 590 942 335 214 198 170x200 200x230 14 65 185 145 65 20 115 286 401
 INL 65-315(F) F2-0550  Y2-250M-2 55 75 273 1043 370 133 373 507
 INL 65-315(F) F2-0750  Y2-280S-2 75 100 1118 410 134 485 618
 INL 80-315 F4-0075  Y2-132M-4 7.5 10 175 201 310 640 631 210 224 210 200x250 250x300 18 80 200 160 8-φ18 22 115 79 194
 INL 80-315 F4-0110  Y2-160M-4 11 15 235 740 255 118 108 226
 INL 80-315 F4-0150  Y2-160L-4 15 20 795 118 129 246
 INL 80-315 F2-0450  Y2-225M-2 45 60 252 957 335 139 286 424
 INL 80-315 F2-0550  Y2-250M-2 55 75 272 1042 370 145 373 518
 INL 80-315 F2-0750  Y2-280S-2 75 100 1117 410 145 485 630
 INL 80-315 F2-0900  Y2-280M-2 90 120 1167 145 541 686
 INL 100-315 F4-0110  Y2-160M-4 11 15 186 235 340 700 740 255 237 210 100 220 180 24 127 108 236
 INL 100-315 F4-0150  Y2-160L-4 15 20 795 127 129 256
 INL 100-315 F4-0185  Y2-180M-4 18.5 25 825 280 128 157 285
 INL 100-315 F2-0750  Y2-280S-2 75 100 272 1117 410 155 485 639
 INL 100-315 F2-0900  Y2-280M-2 90 120 1167 155 541 695
 INL 125-315 F4-0150  Y2-160L-4 15 20 240 235 360 740 795 255 246 220 125 250 210 26 148 129 276
 INL 125-315 F4-0185  Y2-180M-4 18.5 25 825 280 148 157 305
 INL 125-315 F4-0220  Y2-180L-4 22 30 865 148 179 326
 INL 125-315 F4-0300  Y2-200L-4 30 40 237 897 305 154 240 394
 INL 150-315 F4-0150  Y2-160L-4 15 20 260 249 400 895 809 255 266 226 340x340 420x420 150 285 240 8-φ22 196 129 325
 INL 150-315 F4-0185  Y2-180M-4 18.5 25 839 280 196 157 353
 INL 150-315 F4-0220  Y2-180L-4 22 30 879 196 179 375
 INL 150-315 F4-0300  Y2-200L-4 30 40 909 305 198 240 438
 INL 150-315 F4-0370  Y2-225S-4 37 50 284 964 335 206 301 507
 INL 200-315 F4-0300  Y2-200L-4 30 40 300 250 430 920 910 305 290 242 340x340 420x420 200 340 295 12-φ22 30 241 240 481
 INL 200-315 F4-0370  Y2-225S-4 37 50 285 965 335 249 301 550
 INL 200-315 F4-0450  Y2-225M-4 45 60 990 249 312 562
 INL 200-315 F4-0550  Y2-250M-4 55 75 1055 370 264 383 647
 INL 100-400 F4-0150  Y2-160L-4 15 20 220 249 400 800 809 255 265 248 310x310 370x370 18 100 220 180 8-φ18 24 188 129 317
 INL 100-400 F4-0185  Y2-180M-4 18.5 25 839 280 191 157 348
 INL 100-400 F4-0220  Y2-180L-4 22 30 879 191 179 370
 INL 100-400 F4-0300  Y2-200L-4 30 40 909 305 197 240 436
 INL 125-400 F4-0220  Y2-180L-4 22 30 240 380 810 879 280 285 262 200x250 250x300 125 250 210 26 204 179 383
 INL 125-400 F4-0300  Y2-200L-4 30 40 909 305 206 240 445
 INL 125-400 F4-0370  Y2-225S-4 37 50 284 964 335 212 301 513
 INL 125-400 F4-0450  Y2-225M-4 45 60 989 212 312 524
 INL 150-400 F4-0300  Y2-200L-4 30 40 250 249 400 850 909 305 296 264 250x300 300X350 150 285 240 8-φ22 225 240 465
 INL 150-400 F4-0370  Y2-225S-4 37 50 284 964 335 231 301 531
 INL 150-400 F4-0450  Y2-225M-4 45 60 989 231 312 543
 INL 150-400 F4-0550  Y2-250M-4 55 75 1054 370 235 383 617
 INL 150-400 F4-0750  Y2-280S-4 75 100 1129 410 236 544 780

1VR – 3VR

Pump model No. Stage RATED POWER P1 max * Bar Q = DELIVERY
l/min 0 8.3 13.3 23.3 26.7 33.3 40.0 46.7 53.3 60.0 70.0 83.3
m³/h 0 0.5 0.8 1.4 1.6 2.0 2.4 2.8 3.2 3.6 4.2 5.0
US gpm 0 2.2 3.5 6.2 7.0 8.8 10.6 12.3 14.1 15.8 18.5 83.3
[kW] [HP] H = TOTAL METERS HEAD OF WATER COLUMN [m]
1 VR 02 0.37 0.5 2 14.3 13.1 11.7 11.1 9.7 7.9 5.7
03 0.37 0.5 3 21.3 19.4 17.3 16.4 14.2 11.5 8.3
04 0.37 0.5 4 28.1 25.6 22.7 21.5 18.6 15.0 10.6
05 0.37 0.5 5 34.9 31.6 27.9 26.3 22.7 18.2 12.7
06 0.37 0.5 6 41.5 37.4 32.9 31.0 26.6 21.2 14.6
07 0.37 0.5 7 48.6 43.8 38.5 36.4 31.3 25.0 17.3
08 0.55 0.75 8 55.1 49.5 43.5 41.0 35.2 28.0 19.3
09 0.55 0.75 9 61.6 55.1 48.4 45.6 39.1 31.0 21.1
10 0.55 0.75 10 67.9 60.7 53.3 50.2 42.9 33.9 22.9
11 0.55 0.75 11 76.4 69.0 60.8 57.4 49.3 39.4 27.4
12 0.75 1 12 83.0 74.8 65.7 62.0 53.2 42.4 29.3
13 0.75 1 14 89.5 80.5 70.6 66.5 57.0 45.3 31.1
14 0.75 1 15 96.0 86.1 75.4 71.0 60.6 48.0 32.8
15 0.75 1 16 102.4 91.7 80.1 75.3 64.2 50.7 34.4
17 1.1 1.5 18 118.0 106.6 93.9 88.6 76.2 60.9 42.4
19 1.1 1.5 20 131.2 118.1 103.8 97.8 83.9 66.8 46.1
22 1.1 1.5 19 150.7 135.1 118.2 111.2 94.9 75.1 51.2
23 1.5 2 19 160.4 145.2 128.1 121.0 104.2 83.6 58.5
25 1.5 2 18 173.8 156.9 138.3 130.5 112.1 89.7 62.4
27 1.5 2 18 187.0 168.5 148.2 139.7 119.9 95.6 66.2
30 1.5 2 17 206.6 185.6 162.7 153.3 131.1 104.1 71.5
32 3 4 16 224.5 203.8 180.4 170.6 147.3 118.6 83.7
34 3 4 16 238.0 215.8 190.7 180.3 155.5 125.0 87.9
37 3 4 15 258.1 233.6 206.1 194.6 167.6 134.4 94.1
3 VR 02 0.37 0.5 2 15.2 14.4 14.2 13.7 12.9 12.1 11.0 9.7 7.4
03 0.37 0.5 3 22.6 21.3 20.9 20.0 18.9 17.6 15.9 14.0 10.5
04 0.37 0.5 4 29.8 27.8 27.3 26.1 24.5 22.7 20.5 17.8 13.2
05 0.55 0.75 5 37.3 34.7 34.1 32.5 30.7 28.4 25.6 22.4 16.5
06 0.55 0.75 6 44.4 41.1 40.3 38.4 36.2 33.4 30.1 26.2 19.2
07 0.75 1 7 52.4 49.1 48.3 46.2 43.5 40.3 36.5 32.0 23.8
08 0.75 1 8 59.6 55.6 54.6 52.2 49.1 45.4 41.0 35.8 26.4
09 0.75 1 9 66.8 62.0 60.8 58.0 54.5 50.3 45.2 39.4 28.8
10 1.1 1.5 10 75.1 70.5 69.3 66.3 62.6 58.1 52.6 46.1 34.5
11 1.1 1.5 11 82.3 77.1 75.8 72.4 68.3 63.2 57.2 50.1 37.2
12 1.1 1.5 12 89.6 83.6 82.1 78.4 73.9 68.3 61.7 53.9 39.8
13 1.1 1.5 14 96.7 90.0 88.4 84.3 79.3 73.3 66.0 57.6 42.3
14 1.5 2 15 105.4 99.2 97.5 93.3 88.2 81.8 74.2 65.2 48.8
15 1.5 2 16 112.7 105.8 104.0 99.5 93.9 87.0 78.8 69.1 51.6
16 1.5 2 17 120.0 112.4 110.4 105.6 99.6 92.2 83.4 73.1 54.4
17 1.5 2 18 127.2 118.9 116.8 111.6 105.2 97.3 87.9 76.9 57.0
18 2.2 3 18 136.4 129.0 126.9 121.7 115.2 107.2 97.4 86.0 65.1
19 2.2 3 18 143.8 135.8 133.6 128.1 121.2 112.6 102.4 90.2 68.2
21 2.2 3 17 158.5 149.3 146.8 140.7 132.9 123.5 112.0 98.6 74.1
23 2.2 3 17 173.2 162.7 159.9 153.1 144.5 134.1 121.5 106.7 79.9
25 2.2 3 16 187.7 176.0 172.9 165.4 156.0 144.5 130.8 114.6 85.4
27 3 4 15 205.3 194.6 191.5 183.8 174.1 162.2 147.7 130.5 99.3
29 3 4 14 220.1 208.4 205.0 196.7 186.3 173.3 157.7 139.3 105.7
31 3 4 13 235.0 222.1 218.5 209.5 198.3 184.4 167.6 147.9 111.9
33 3 4 13 249.7 235.7 231.8 222.2 210.1 195.3 177.4 156.3 118.0

6VR – 10VR

Pump model No. Stages RATED POWER P1 max * Bar Q = DELIVERY
l/min 0 40 46.7 53.3 60 70 83.3 100 120 133.3 150 166.7 183.3 200 216.7 233.3 266.7
m³/h 0 2.4 2.8 3.2 3.6 4.2 5 6 7.2 8 9 10 11 12 13 14 16
US gpm 0 10.6 12.3 14.1 15.8 18.5 83.3 26.4 31.7 35.2 39.6 44 48.4 52.8 57.2 61.6 70.3
[kW] [HP] H = TOTAL METERS HEAD OF WATER COLUMN [m]
6 VR 2 0.37 0.5 3 15.1 13.8 13.4 13 12.3 11.3 9.9 7.5
3 0.37 0.5 4 22.3 20 19.3 18.6 17.6 16.1 14 10.3
4 0.55 0.75 6 29.6 26.5 25.7 24.8 23.4 21.5 18.7 13.7
5 0.75 1 8 37.4 33.9 32.9 31.7 30 27.6 24.1 17.9
6 0.75 1 9 44.5 40 38.7 37.3 35.2 32.3 28.1 20.7
7 1.1 1.5 11 52.5 47.8 46.4 44.8 42.4 39 34.2 25.6
8 1.1 1.5 12 59.7 54.1 52.4 50.6 47.8 43.9 38.3 28.5
9 1.1 1.5 14 66.8 60.2 58.2 56.2 53.1 48.6 42.3 31.2
10 1.5 2 16 75.2 68.6 66.5 64.3 60.9 56 49.1 36.8
11 1.5 2 17 82.4 74.9 72.6 70.1 66.3 60.9 53.3 39.8
12 1.5 2 19 89.6 81 78.5 75.8 71.6 65.7 57.4 42.6
13 1.5 2 20 96.8 87.1 84.4 81.4 76.9 70.4 61.4 45.3
14 2.2 3 19 105.7 96.9 94.1 91 86.3 79.4 69.8 52.7
15 2.2 3 19 113.1 103.3 100.3 97 91.9 84.5 74.2 55.8
16 2.2 3 19 120.3 109.7 106.4 102.9 97.4 89.6 78.5 58.9
17 2.2 3 18 127.6 116 112.5 108.8 102.9 94.5 82.8 61.9
18 2.2 3 18 134.8 122.3 118.5 114.5 108.3 99.4 87 64.8
19 3 4 18 142 128.5 124.5 120.2 113.6 104.2 91.1 67.6
20 3 4 17 151.8 139.9 135.9 131.7 124.9 115.1 101.4 77.2
21 3 4 16 159.2 146.5 142.3 137.8 130.7 120.4 106 80.5
23 3 4 16 173.9 159.6 154.9 150 142.1 130.8 115.1 87
25 3 4 15 189.2 172.2 167.6 162.8 154.8 142.6 123.5 92.9
28 4 5.5 14 214.2 196.8 191.9 186.6 177.9 164.4 143.2 109
30 4 5.5 13 229.1 210.1 204.8 199.1 189.8 175.3 152.5 115.9
33 4 5.5 12 251.5 229.9 224 217.7 207.4 191.3 166.1 125.9
36 5.5 7.5 10 275.2 252.9 246.6 239.8 228.7 211.4 184 140.2
10 VR 2 0.75 1 4 20.1 18.3 17.5 16.9 16 14.9 13.7 12.2 10.5 8.8
3 1.1 1.5 6 30.2 27.6 26.3 25.4 24 22.5 20.6 18.3 15.8 13.3
4 1.5 2 8 40.5 37.1 35.4 34.2 32.4 30.3 27.9 24.9 21.5 18.1
5 1.5 2 10 50.3 45.5 43.3 41.7 39.4 36.8 33.7 29.9 25.8 21.6
6 2.2 3 12 60.9 55.9 53.5 51.6 48.9 45.8 42.2 37.6 32.6 27.5
7 2.2 3 15 70.7 64.5 61.5 59.3 56.1 52.5 48.2 42.9 37.1 31.2
8 3 4 17 81.7 75.7 72.5 70.1 66.6 62.5 57.7 51.7 44.9 38
9 3 4 19 91.7 84.6 81 78.2 74.2 69.6 64.1 57.4 49.8 42.1
10 4 5.5 20 102.8 95.9 92 89 84.6 79.6 73.6 66.2 57.6 49
11 4 5.5 19 112.9 105 100.7 97.3 92.5 87 80.4 72.2 62.8 53.3
12 4 5.5 19 122.9 114.1 109.3 105.6 100.3 94.2 87 78 67.8 57.5
13 4 5.5 18 132.9 123 117.7 113.7 108 101.3 93.5 83.8 72.8 61.6
15 5.5 7.5 17 153.6 142.7 136.8 132.2 125.6 118 109 97.8 85.1 72.1
17 5.5 7.5 16 173.6 160.7 153.8 148.5 141 132.4 122.1 109.4 95 80.4
19 7.5 10 15 195.1 182 174.6 168.8 160.6 151 139.7 125.5 109.3 92.9
21 7.5 10 14 215.2 200.2 191.9 185.5 176.4 165.8 153.2 137.5 119.6 101.5
23 7.5 10 14 235.3 218.3 209.1 202.1 192 180.3 166.5 149.3 129.7 109.9
24 11 15 12 248.2 234 225 218 207.8 195.9 181.8 164.1 143.5 122.4

15VR – 20VR

Pump model No. Stages RATED POWER P1 max * Bar Q = DELIVERY
l/min 0 120 133.3 150 166.7 183.3 200 216.7 233.3 266.7 300 350 400 433.3 466.7 500
m³/h 0 7.2 8 9 10 11 12 13 14 16 18 21 24 26 28 30
US gpm 0 31.7 35.2 39.6 44 48.4 52.8 57.2 61.6 70.3 79.1 92.3 105.5 114.3 123.1 131.9
[kW] [HP] H = TOTAL METERS HEAD OF WATER COLUMN [m]
15 VR 1 0.75 1 5 13 11.7 11.6 11.4 11.1 10.8 10.4 10.1 9.1 7.9 5.6 -
2 1.5 2 11 27.1 24.3 23.9 23.5 22.9 22.3 21.7 21.1 19.3 17.2 13.1 8
3 2.2 3 16 41.2 37.4 36.7 36.1 35.3 34.4 33.6 32.7 30.1 27.1 20.8 13.5
4 3 4 20 55.1 50.2 49.3 48.5 47.5 46.3 45.2 44 40.6 36.6 28.2 18.5
5 4 5.5 20 72.3 64.7 63.7 62.6 61.5 60.1 58.5 57.2 53.6 48.7 38.9 27.6
6 5.5 7.5 20 88 80.1 78.9 77.7 76.4 74.9 73.3 71.7 68 62.4 51.3 37.5
7 5.5 7.5 20 102.5 93 91.5 90.1 88.6 86.8 84.9 83 78.6 72 59.1 43
8 7.5 10 20 116.9 105.9 104.2 102.6 100.8 98.8 96.5 94.4 89.3 81.7 66.9 48.5
9 7.5 10 19 131.2 118.5 116.6 114.8 112.7 110.4 107.9 105.5 99.7 91.1 74.3 53.6
10 11 15 18 147.3 134.1 132.1 130.1 127.9 125.5 122.8 120.2 114.1 104.8 86.3 63.4
11 11 15 18 161.7 147.1 144.9 142.7 140.3 137.6 134.6 131.7 125 114.7 94.4 69.2
12 11 15 17 176.2 160 157.6 155.2 152.6 149.6 146.3 143.2 135.7 124.5 102.3 74.8
13 11 15 16 190.6 172.9 170.3 167.7 164.8 161.6 158 154.6 146.4 134.2 110.1 80.3
14 11 15 16 204.9 185.7 182.9 180 176.9 173.4 169.5 165.9 157 143.8 117.8 85.7
15 15 20 15 220.7 200.2 197.2 194.2 190.8 187.1 183 179 169.7 155.7 127.8 93.4
16 15 20 15 235.1 213.1 209.8 206.6 203 199 194.6 190.4 180.3 165.3 135.6 98.9
17 15 20 14 249.4 225.9 222.4 219 215.1 210.9 206.1 201.6 190.9 174.8 143.3 104.2
20 VR 1 1.1 2 5 14.3 12.9 12.8 12.5 12.2 11.9 11.4 10.5 9 6.7 4 -
2 2.2 3 11 29.7 26.9 26.6 26.3 26 25.5 24.5 23.3 20.7 17.1 13.9 10.6
3 3 4 16 45 40.9 40.4 39.9 39.2 38.5 37.2 35.5 31.6 25.8 21.5 16.6
4 4 5.5 20 62.2 55.7 54.9 54.2 53.7 52.8 50.9 49 44 36.8 31.1 25.2
5 5.5 7.5 20 78.6 70.8 69.9 69 68.5 67.4 65.1 62.8 56.9 47.9 41 33.5
6 7.5 10 19 94.2 86.2 85.1 84.1 83.2 82.2 79.7 77.3 70 59.4 51.3 42
7 7.5 10 19 109.5 99.8 98.5 97.4 96.3 95.1 92.2 89.2 80.6 68.2 58.7 47.9
8 11 15 17 126.5 116.1 114.7 113.5 112.3 111 107.9 104.8 95.4 81.4 70.7 58.3
9 11 15 17 142 130.2 128.6 127.2 125.9 124.4 120.8 117.3 106.7 90.8 78.7 64.8
10 11 15 16 157.5 144.2 142.4 140.8 139.3 137.7 133.6 129.6 117.7 100.1 86.6 71.1
11 15 20 15 174 159.4 157.4 155.7 154.1 152.3 147.9 143.5 130.5 111.2 96.4 79.3
12 15 20 14 189.5 173.4 171.2 169.3 167.6 165.5 160.7 155.8 141.6 120.4 104.2 85.6
13 15 20 13 204.9 187.3 184.9 182.8 180.9 178.7 173.4 168.1 152.5 129.5 111.9 91.7
14 15 20 13 220.3 201.1 198.5 196.2 194.1 191.7 186 180.2 163.2 138.4 119.4 97.7
15 18.5 25 11 237.4 218.1 215.4 213.1 211 208.6 202.6 196.8 179.4 153.1 133 109.7
16 18.5 25 10 252.9 232.2 229.4 226.9 224.6 222 215.6 209.4 190.7 162.7 141.1 116.3
17 18.5 25 10 268.5 246.3 243.3 240.6 238.2 235.4 228.6 221.9 202 172.1 149.2 122.8

30VR – 45VR

Pump model No. Stages RATED POWER P1 max * Bar Q = DELIVERY
l/min 0 350 417 500 566.7 666.7 700 800 900 1000 1066.7 1166.7
m³/h 0 21 25 30 34 40 42 48 54 60 64 70
US gpm 0 92.3 109.9 131.9 149.5 175.9 184.7 211 237.4 263.8 281.4 307.8
[kW] [HP] H = TOTAL METERS HEAD OF WATER COLUMN [m]
30 VR 1 2.2 3 3 24.8 18.6 17.2 15.8 12.7 11.6
2-2A 4 5.5 3 36.2 29.3 26.3 23.1 17.8 15.7
2-1A 4 5.5 7 42.8 34.3 31.6 28.8 23.4 21.3
2 5.5 7.5 9 48.5 39.6 36.9 34.4 29.1 27.2
3-2A 5.5 7.5 9 60.3 49 44.9 40.6 32.7 29.6
3-1A 7.5 10 13 67.5 54.1 50.1 46.1 38 35
3 7.5 10 14 72.2 58.2 54.2 50.3 42.4 39.5
4-2A 7.5 10 14 85.1 68.6 63.9 58.4 48.8 44.7
4-1A 11 15 18 92.8 75.3 70.2 65.2 54.8 50.8
4 11 15 20 99.4 81 76.3 71.8 62.2 58.5
5-2A 11 15 20 109.2 89.5 82.9 76.2 63.5 58.5
5-1A 11 15 20 115.1 93.6 87 80.6 67.5 62.4
5 15 20 20 121.1 99.3 93.1 87.4 74.9 70
6-2A 15 20 20 133.8 109.6 101.7 93.9 78.7 72.7
6-1A 15 20 20 139.7 113.7 105.8 98.3 82.7 76.6
6 15 20 20 145.6 119.3 111.9 105 90.1 84.2
7-2A 15 20 20 157.5 128.3 119.1 110.1 92.3 85.3
7-1A 15 20 20 163.3 132.3 123.2 114.4 96.2 89.1
7 18.5 25 20 169.2 137.9 129.1 121 103.5 96.6
8-2A 18.5 25 20 185.5 152 142 132.5 112.8 105.1
8-1A 18.5 25 20 191.9 156.4 146.6 137.4 117.4 109.6
8 18.5 25 20 198.4 162.5 153 144.6 125.4 117.8
9-2A 22 30 20 209.8 171.4 160.2 149.5 127.4 118.7
9-1A 22 30 18 216.2 175.8 164.7 154.4 131.9 123.1
9 22 30 18 222.7 181.8 171.1 161.5 139.8 131.3
10-2A 22 30 18 234 190.6 178.1 166.3 141.7 132.1
10-1A 22 30 18 240.3 194.9 182.6 171.1 146.1 136.4
10 30 40 17 246.8 200.9 188.9 178.2 154 144.5
11-2A 30 40 16 262.9 218.3 205.1 192.7 166.3 155.8
11-1A 30 40 15 269.5 222.9 209.9 197.8 171.2 160.5
11 30 40 15 276.2 229.2 216.5 205.3 179.4 169.1
12-2A 30 40 14 288.1 240 226 213 184.4 173.3
12-1A 30 40 14 294.7 244.8 230.9 218.4 189.7 178.6
12 30 40 13 301.4 251.1 237.8 226 197.6 188
13-2A 30 40 13 313 260.4 245.3 231.3 200.3 188.3
13-1A 30 40 12 319.6 265.2 250.2 236.6 205.6 193.6
13 30 40 11 326.3 271.5 257 244.2 213.5 202.9
45 VR 1-1A 3 4 7 19.6 16 14.6 14 12.1 9.7 7 4.9
1 4 5.5 7 25.1 20.4 19 18.5 16.8 14.8 12.5 10.4
2-2A 5.5 7.5 14 38.4 33.9 31.5 30.5 27.4 23.7 19.3 16
2 7.5 10 14 49 42 39.8 38.8 35.5 31.8 27.5 24.1
3-2A 11 15 20 63 55.9 52.7 51.4 46.8 41.5 35.1 30.3
3 11 15 20 74.2 65 62.1 60.9 56.5 51.3 45.5 41
4-2A 15 20 20 87.5 77.4 73.3 71.6 65.5 58.4 50.1 43.8
4 15 20 20 97.5 86.4 82.8 81.3 75.4 68.5 60.8 54.7
5-2A 18.5 25 20 112.1 99.9 95 92.9 85.5 76.7 66.6 58.8
5 18.5 25 20 122.3 109.1 104.7 102.9 95.6 87.1 77.5 70
6-2A 22 30 20 136 120.7 114.9 112.4 103.4 92.9 80.8 71.5
6 22 30 20 146 129.8 124.5 122.2 113.3 103 91.6 82.5
7-2A 30 40 20 162.6 146.4 140.1 137.3 127.2 115.2 101.3 90.8
7 30 40 20 173 155.9 150.1 147.7 137.7 126 112.7 102.5
8-2A 30 40 20 187.2 168.3 161.1 158 146.4 132.7 116.8 104.8
8 30 40 20 197.5 177.7 171.1 168.2 156.8 143.4 128.2 116.5
9-2A 37 50 20 211.7 190.2 182.2 178.7 165.7 150.3 132.6 119.1
9 37 50 18 222 199.7 192.2 188.9 176.1 161 143.9 130.7
10-2A 37 50 18 236.1 211.9 203 199.1 184.6 167.5 147.9 132.9
10 37 50 17 246.4 221.3 212.9 209.3 195 178.1 159.1 144.4
11-2A 45 60 17 261.5 235.3 225.7 221.5 205.7 187 165.5 149.1
11 45 60 15 271.8 244.8 235.7 231.8 216.2 197.7 176.9 160.9
12-2A 45 60 15 286 257.2 246.7 242.1 224.8 204.5 181 163.2
12 45 60 14 296.3 266.6 256.7 252.4 235.3 215.2 192.4 174.9
310.4 278.9 267.6 262.7 243.9 221.8 196.5 177.2

65VR – 95VR

Pump model No. Stages RATED POWER P1max * Bar Q = DELIVERY
l/min 0 417 500 666.7 750 833.3 1000 1166.7 1333.3 1466.7 1666.7 1833.3 1916.7 2000
m³/h 0 25 30 40 45 50 60 70 80 88 100 110 115 120
US gpm 0 109.9 131.9 175.9 197.9 219.8 263.8 307.8 351.7 386.9 439.7 483.6 505.6 528.4
[kW] [HP] H = TOTAL METERS HEAD OF WATER COLUMN [m]
65 VR 1-1A 4 5.5 3 21.3 18.2 17 16.3 15.5 13.3 10.3 6.8 3.7
1 5.5 7.5 7 30.2 24.8 23 22.3 21.7 20.3 18.3 15.4 12.2
2-2A 7.5 10 7 38.9 37.2 35.8 34.8 33.8 30.5 25.8 20.3 14.6
2-1A 11 15 11 47.8 44.3 42.6 41.6 40.6 38 34.2 29.3 24
2 11 15 15 59.3 51.2 48 46.8 45.5 43.2 39.9 35.3 30.8
3-2A 15 20 15 67.3 63 60.6 59.1 57.6 53.4 47.2 39.5 31.4
3-1A 15 20 19 75.5 69.2 66.3 64.8 63.2 59.5 54.1 46.9 38.7
3 18.5 25 20 89.6 77.6 72.8 70.9 69 65.7 60.7 53.9 47.2
4-2A 18.5 25 20 95.5 88.6 85.1 83.2 81.1 76 68.3 58.5 47.9
4-1A 22 30 19 103.7 94.7 90.9 88.8 86.7 82.1 75.2 65.9 55.3
4 22 30 18 111.8 100.8 96.7 94.5 92.4 88.4 82.3 73.3 62.9
5-2A 30 40 18 125.3 116.2 111.8 109.5 107 101.1 92.1 80.4 68
5-1A 30 40 17 133.9 122.7 117.9 115.5 113 107.6 99.5 88.4 76.2
5 30 40 16 142.4 129.2 124 121.5 119 114.1 106.9 96.3 84.6
6-2A 30 40 16 153.5 141.6 136.2 133.3 130.3 123.4 112.9 99 84.1
6-1A 37 50 15 162.1 148.2 142.4 139.4 136.4 130 120.4 107.1 92.5
6 37 50 14 170.6 154.7 148.5 145.4 142.3 136.5 127.8 115 100.9
7-2A 37 50 14 181.7 167 160.6 157.2 153.6 145.7 133.7 117.7 100.3
7-1A 37 50 14 190.1 173.5 166.6 163.1 159.5 152.1 141 125.5 108.3
7 45 60 13 199.5 181.1 173.8 170.3 166.7 160 149.9 135.1 118.9
8-2A 45 60 13 210.6 193.5 186 182.2 178.1 169.3 156 137.9 118.4
8-1A 45 60 12 219.2 200 192.1 188.2 184.1 175.8 163.4 145.9 126.6
8 45 60 11 227.7 206.5 198.2 194.1 190.1 182.3 170.7 153.8 135.1
95 VR 1-1A 5.5 7.5 7 26.4 20.5 19.9 18.7 17.3 15.5 13.2 9.5 5.7 3.5
1 7.5 10 13 35.6 27 25.6 23.2 21.9 20.4 18.8 15.7 12.4 10.5
2-2A 11 15 15 49.6 42.4 41.3 39 36.6 33.2 29.4 22.7 15.7 11.7
2 15 20 20 69.2 56.6 54.5 50.5 47.3 44.3 41.6 36.3 30.5 27.3
3-2A 18.5 25 20 80.4 70.8 69.1 65.6 62.2 57.7 53 44.3 34.9 30.4
3 22 30 20 92.4 82.6 80.6 76.7 73.2 69.4 65.5 57.8 49.7 45.2
4-2A 30 40 19 113.1 100.6 98.2 93.5 89 83.5 77.5 66.5 54.6 48.5
4 30 40 17 125.6 113 110.4 105.2 100.6 95.7 90.7 80.8 70.2 64.4
5-2A 37 50 17 144.1 128.4 125.4 119.3 113.7 106.9 99.7 86.1 71.6 64.1
5 37 50 16 156.6 140.7 137.4 130.9 125.2 119.1 112.8 100.3 87.1 79.8
6-2A 45 60 16 175.9 157 153.4 146.1 139.3 131.4 122.9 107 89.8 80.8
6 45 60 14 188.4 169.5 165.6 157.8 150.9 143.6 136.2 121.3 105.5 96.7

Catalogs & Brochures
