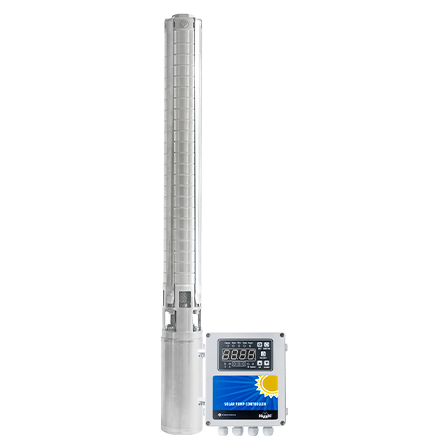

Pump1

SAE-SAS Series

Solar Pump

Water is essential to all forms of life. In many locations around the world, traditional power is unavailable or unreliable to power a submersible pump and motor.
Relying on our proven system technology, COVERCO is offering a wide range of solar powered pumping system to our customers.

APPLICATION

  • Agriculture
  • Irrigation for various purposes
  • Domestic water supply
  • Industrial
  • Residential

FEATURES

  • High efficiency permanent magnet Brushless DC Motor – less panels, more water respectively
  • Direct DC feeding, AC and DC power source compatible (depending on models)
  • MPPT algorithm maximizes system performance
  • Automatic operation minimizes manpower requirement
  • Easy system set-up and LED display for working conditions monitoring
  • Protection against water hammer with built-in check valve
  • Comprehensive motor protection (overload, overvoltage, undervoltage, phase loss, dry run, overheat) through solar controller
  • Encapsulated submersible motor with water lubricated thrust bearing design for maintenance free operation and high reliability

SPECIFICATIONS

  • Control box IP65 rated, working ambient temperature up to 600C (controller only)
  • Controller available in DC input only or AC (Single phase 220V) and DC input option
  • 1.5m standard cable length up to 2HP, 2.5m length for 3HP motor

4SAE SERIES

Part Number Pump Model Stages Power Outlet Q m3/hr 0 0.5 1 1.5 2 2.5 3 3.5 4
kW HP l/min 0 8.3 16.7 25 33.3 41.7 50 58.3 66.6
98513030710 4SAE3-7/10 7 0.75 1 1.5" Head (m) 90 84 81 75 67 57 47 34 23
98513031115 4SAE3-11/15 11 1.1 1.5 1.5" 140 132 124 112 100 86 70 54 39
98513031420 4SAE3-14/20 14 1.5 2 1.5" 197 190 180 162 146 130 110 91 80
98513031930 4SAE3-19/30 19 2.2 3 1.5" 280 265 251 238 220 200 178 150 120

Part Number Pump Model Stages Power Power Q m3/hr 0 1 2 3 4 5 6
kW HP l/min 0 16.7 33.3 50 67 83 100
98513040610 4SAE4-6/10 6 0.75 1 0.75 Head (m) 79 74 67 57 47 37 19
98513041130 4SAE4-11/30 11 1.5 2 1.5 190 185 180 161 140 120 100

Part Number Pump Model Stages Power Power Q m3/hr 0 1 2 3 4 5 6 7
kW HP l/min 0 16.7 33.3 50 67 83 100 117
98513050715 4SAE5-7/15 7 1.1 1.5 1.1 Head (m) 88 85 80 71 67 51 40 26
98513050920 4SAE5-9/20 9 1.5 2 1.5 115 111 105 96 83 72 53 38
98513051230 4SAE5-12/30 12 2.2 3 2.2 170 162 151 135 118 100 80 58

Part Number Pump Model Stages Power Part Number Q m3/hr 0 2 4 6 7 8 10
kW HP l/min 0 33 67 100 116 133 167
98513070620 4SAE7-6/20 6 1.5 2 98513070620 Head (m) 90 83 72 62 55 49 35

Part Number Pump Model Stages Power Part Number Q m3/hr 0 2 4 6 8 9 10 12
kW HP l/min 0 33 67 100 133 150 167 200
98513090515 4SAE9-5/15 5 1.1 1.5 98513090515 Head (m) 70 61 51 39 29 24 19 10
98513090830 4SAE9-8/30 8 2.2 3 98513090830 120 105 92 76 62 56 49 34

4SAS SERIES

Part Number Pump Model Stages Power Outlet Q m3/hr 0 1 2 3 4 5 6
kW HP l/min 0 16.7 33 50 67 83 100
98514041020 4SAS4-10/20 10 1.5 2 1.5" Head (m) 140 135 128 112 95 80 57
98514041530 4SAS4-15/30 15 2.2 3 1.5" 215 202 190 161 148 100 60

Part Number Pump Model Stages Power Outlet Q m3/hr 0 2 4 5 6 7 8
kW HP l/min 0 33 67 83 100 117 133
98514061530 4SAS6-15/30 15 2.2 3 1.5" Head (m) 215 183 147 106 79 52 30

Part Number Pump Model Stages Power Outlet Q m3/hr 0 2 4 6 8 10 12
kW HP l/min 0 33 67 100 133 167 200
98514090830 4SAS9-8/30 8 2.2 3 2" Head (m) 115 104 89 75 61 47 36

4″ COVERCO BLDC MOTOR

PART NO. DESCRIPTION KW HP DC RATED VOLTAGE LEAD LENGTH
985641511 Motor, 1HP, DC 110V 0.75 1 110V 1.5m
985642512 Motor, 1.5HP, DC 150V 1.1 1.5 150V 1.5m
985643513 Motor, 2HP, DC 180V 1.5 2 180V 1.5m
985644514 Motor, 3HP, DC 250V 2.2 3 250V 2.5m

4SCB Series

PART NO. DESCRIPTION KW HP REC. DC INPUT RANGE AC INPUT RANGE VOC REC. SOLAR PANEL QTY
98564C001 4SCB, 1HP, DC 0.75 1 80-150V NA 220V 3 X 550W
98514C511 4SCB, 1HP, DC, AC 1PH 220V 50Hz 0.75 1 60-380V 150-240V 450V 3 X 550W
98514C002 4SCB, 1.5HP, DC 1.1 1.5 60-380V NA 450V 5 X 550W
98514C512 4SCB, 1.5HP, DC, AC 1PH 220V 50Hz 1.1 1.5 60-380V 150-240V 450V 5 X 550W
98514C003 4SCB, 2HP, DC 1.5 2 60-380V NA 450V 6 X 550W
98514C513 4SCB, 2HP, DC, AC 1PH 220V 50Hz 1.5 2 60-380V 150-240V 450V 6 X 550W
98514C004 4SCB, 3HP, DC 2.2 3 60-380V NA 450V 7 X 550W
98514C514 4SCB, 3HP, DC, AC 1PH 220V 50Hz 2.2 3 60-380V 150-240V 450V 7 X 550W
